FOOTBALL STADIUM VOLGOGRAD-ARENA

ⓒJSC "Storytransgaz"

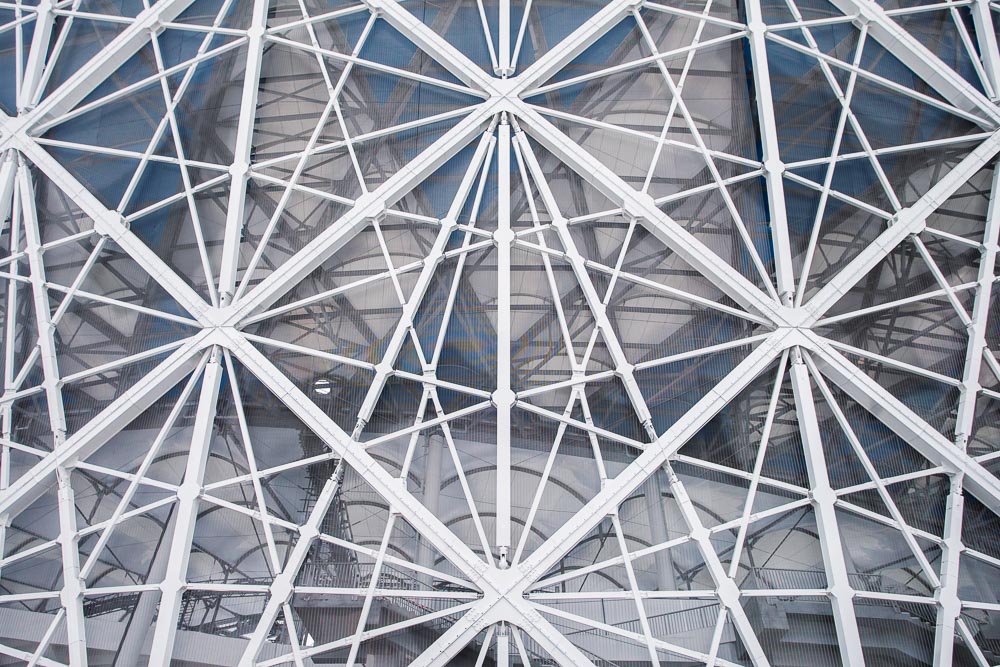

The stadium is a football stadium for the 2018 world Cup in Russia. The stadium has the shape of an overturned truncated cone. The facade is made as the image of a solemn salute, symbolizing the saluting military honors defenders of the homeland, consists of a steel shell of the rods forming rhombus structure from the vertices of rhombuses of the lower level upward directed radiating rods of smaller cross section, their crossing on the upper levels creates a figure of flying fireworks. The architectural expressiveness techniques used in the stadium project allowed creating a unique image associated with the Victory and referring to the heroic past of the Volgograd city and the entire country.
Due to the design solutions, it was possible to obtain a light "air" structure of the stadium's surface with a large extension over the stands - more than 46m.

ⓒJSC "Storytransgaz"

볼고그라드 축구경기장은 2018년 러시아 월드컵을 위해 지어진 아레나다. 경기장은 뒤집힌 원뿔대 모양이며, 입면은 고국의 명예로운 수호자들을 연상시키듯 엄숙하고 치열한 선들이 얽혀있다. 곳곳에 쓰인 구조는 마름모의 꼭짓점에서부터 뻗어나가는 강철 셸과 스팬들로 이뤄져 있다. 경기장에 이러한 입면은 관중석으로부터 가벼우면서도 튼튼하게 경기장의 틀을 만들어낸다. 이 얽히는 선들의 건축적 표현 방법은 건축가가 이곳의 행사를 축하하고 이 경기장만의 승리의 이미지를 새롭게 만들어내기 위함이다. 이러한 이미지들은 볼고그라드라는 도시가 가진 오래된 영웅적 역사를 떠오르게 만든다.

ⓒJSC "Storytransgaz"

ⓒJSC "Storytransgaz"

STRUCTURE MODEL_ROOF

FLOOR PLAN



Architect PI-ARENA
Location Volgograd, Russia
Program Football stadium
Site area 20.00ha
Building area 56,340.00㎡
Gross floor area 127,480.00㎡
Height 49.5m
Capacity About 45,000
Design period 2012. 10 - 2017. 6
Construction period 2014. 12 - 2017. 12
Completion 2017
Principal architect Dmitry Bush
Project architect Igor Kufonin
Architect Alexey Orlov, Anton Zaklyuchaev, Lyudmila Romanova, Ekaterina Buzmakova, Olga Seri ova, Vera Alekseeva, Vitalia Bilkey, Anastasia Belousova, Sofia Fleishman, Sergey Korobkov, Andrey Tsyplakov, Anna Zolotova, Tatiana Barinova, Ksenia Kaptsova, Ekaterina Kolesnikova, Marina Zharkova Master plan Kristina Kharitonova, Marina Osintseva
Structural engineer Mark Livshin, Denis Svirsky, Sergey Zotkin
Mechanical engineer Erlan Bekmukhamedov, Larisa Esina, Alexey Ivanov
Electrical engineer Mikhail Kislov
Technologist Nikolay Peryshkin, Alexander Ustavitskiy, Dmitry Komardin Visualization Pavel Kuritsyn, Vadim Kuchuk, Maksim Arkhipov, Alexey Cherednikov
Construction JSC "Stroytransgaz" Client FSUE "Sport-Engineering"
Photographer JSC "Stroytransgaz", Kristina Kharitonova, PI-ARENA



해당 프로젝트는 건축문화 2021년 9월호(Vol. 484)에 게재되었습니다.
The project was published in the September, 2021 issue of the magazine(Vol. 484).
