© Zviad Burchuladze

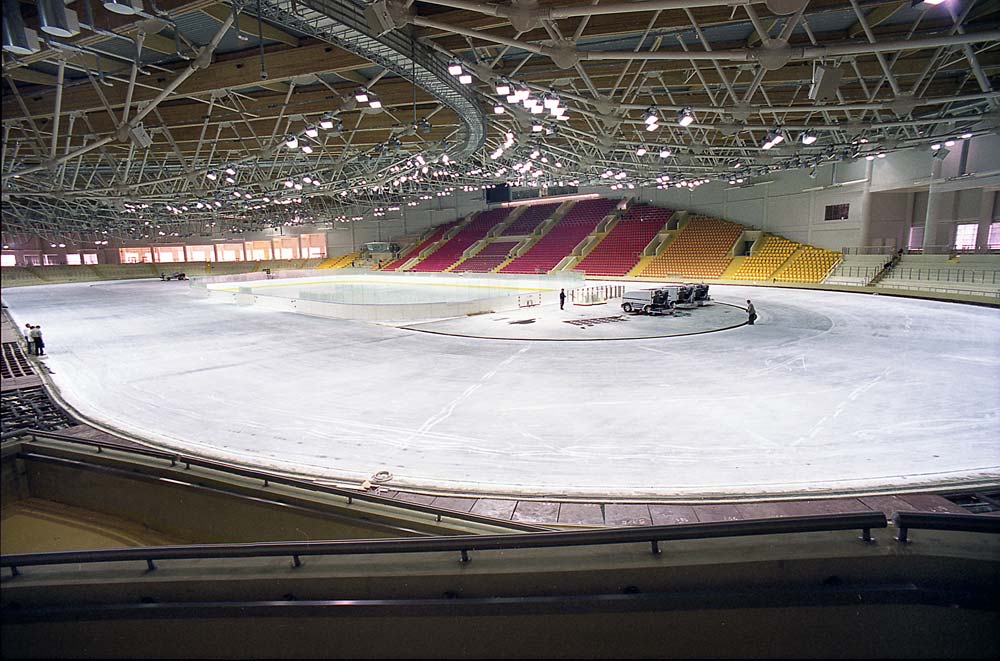

The indoor skating center with a capacity of 7,200 spectators is located in the Krylatskoe district next to the Olympic Cycling track and Rowing channel. It is designed for training athletes and holding competitions of any level, up to the world Championships and cups in cross - country skating. The ISC is a 6-storey building with a semicircular shape in the plan. This form made it possible to set up the main stand for 6,000 spectators from the most spectacular side-at the finish line. Large-span covering over Arena and tribunes (117m in the radial direction) is solved in the form of two rows of fan-shaped radiating metal trusses resting on concrete stem foundation of the main bearing, reinforced concrete columns around the perimeter and suspended by steel cables to the L-shaped pole (total height 70m) with embedded in the foundation braces.

© Denis_Gritsov

크릴라츠코예빙상경기장
7,200명의 관중을 수용하는 크릴라츠코예 빙상경기장은 올림픽 사이클링 트랙과 조정 수로 옆에 있다. 이 경기장은 크로스컨트리 스케이팅에서 세계 선수권 대회와 컵 대회에 이르기까지 모든 수준의 선수 훈련과 대회 개최를 위해 설계되었다. ISC는 건물의 계획에 반원 모양을 포함하고 있는 6층 건물이다. 이 형태를 통해 가장 좋은 구경을 할 수 있는 쪽인 결승선에 6,000명의 관중을 위한 메인 스탠드 좌석이 설치되어 있다. 경기장과 관중석(방사 방향으로 117m)을 덮는 긴 스팬의 지붕은 주 구조의 콘크리트 기초와 외벽 둘레의 내력 콘크리트 기둥에 놓인 2줄의 부채꼴 형 방사 금속 트러스로 만들어졌으며, 기초 버팀대에 내장된 70m 높이의 ㄱ자형 장대에 철제 케이블로 고정된다.

© Vladimir Svetashkov
© Vladimir Svetashkov
ELEVATION
FLOOR PLAN



Architect PI-ARENA
Location Krylatsky hills, Moscow, Russia
Program Indoor Skating Center
Site area 7.71ha
Building area 26,500.00㎡
Gross floor area 37,000.00㎡
Height 55m
Capacity 7,200seats
Design period 2001. 2 - 2002. 12
Construction period 2003. 1 - 2004. 9
Completion 2004
Principal architect Dmitry Bush
Project architect Sergey Chuklov
Architects Alexander Kuzmin, Andrey Bokov, Valentin Valuiskikh, Lyudmila Romanova, Anna Zolotova, Oleg Gak, Ilia Babak, Kira Lanina, Zviad Burchuladze, Alexander Timokhov
Cooperation MNIIP Master plan Vladimir Timofeev, Nadezhda Odrova, Larisa Davydova
Interior Leonardo LLC Alexey Shvets
Structural engineer Mikhail Kelman, Pavel Eremeev, Sergey Turkovsky, Alexey Pogoreltsev, Vladimir Travush, Anna Naumocheva, Natalia Starikova, Elena Subbotina, Irina Rusina, Ekaterina Svatikova, Margarita Savtsova
Mechanical engineer Mark Livshin, Erlan Bekmukhamedov, Alexey Ivanov
Electrical engineer Evgeniy Tretyakov
Technologist Andrey Shabaidash, Nadezhda Morozova
Construction OJSC "Moskapstroy"
Client JSC "Technical management of capital construction №1"
Photographer Vladimir Svetashkov, Zviad Burchuladze



해당 프로젝트는 건축문화 2021년 9월호(Vol. 484)에 게재되었습니다.
The project was published in the September, 2021 issue of the magazine(Vol. 484).
