ⓒ Football club “Lokomotiv”

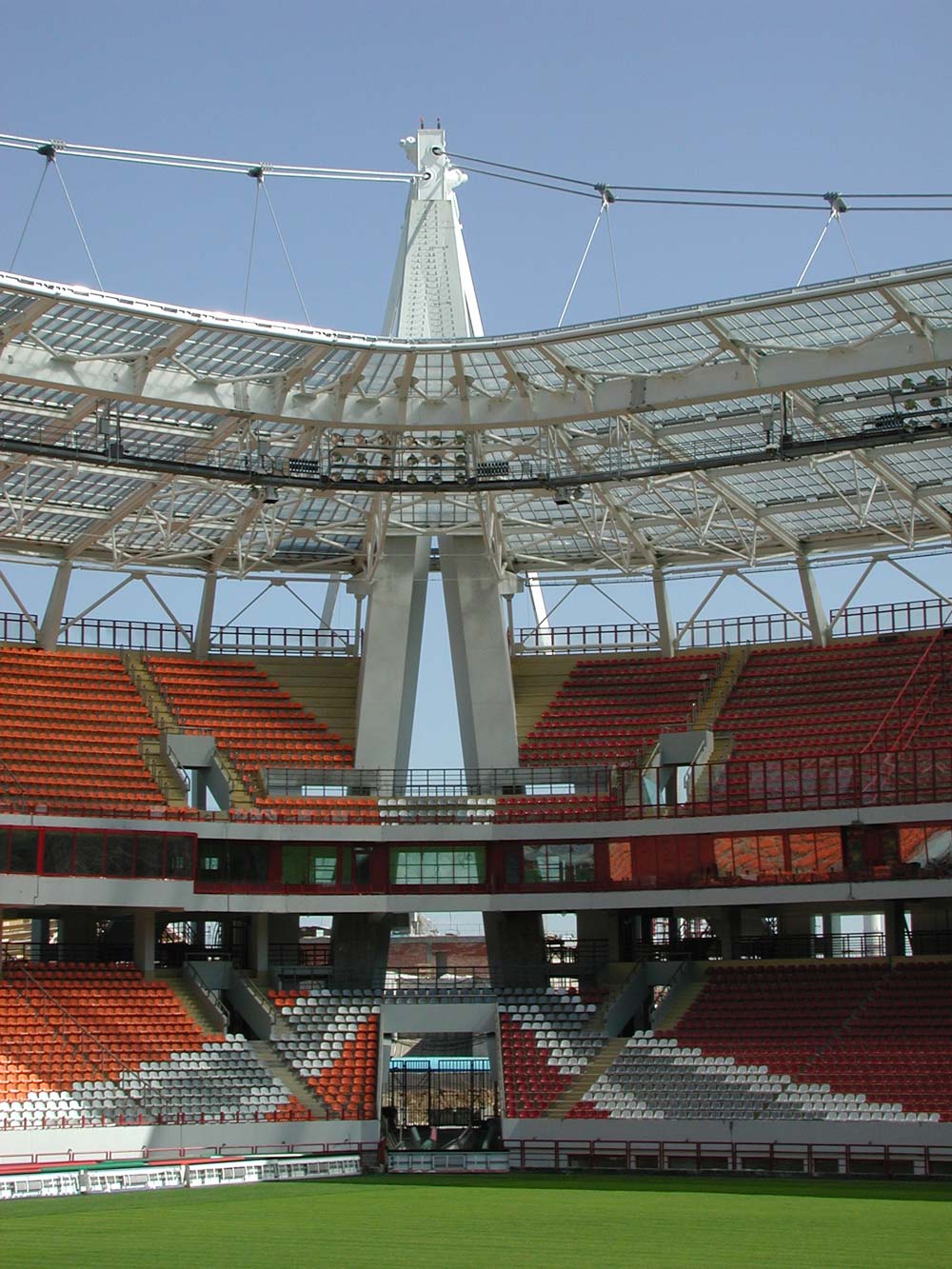

The 25-hectare Lokomotiv sports complex with its reconstructed stadium is an important city-forming element. The integrity of the image of the stadium is achieved by the consistency of its architectural and structural solutions. The stadium is a six-story structure with two tiers of stands. Between the upper and lower levels is a floor of boxes with two spectator rows. Levels of stands are divided into four sectors to make it difficult for different groups of fans to communicate. The football field is equipped with a drainage system, an automated lawn watering system and a heating system. There is a security moat around the field. The spectator stands are covered with a light-transmitting canopy-ring, supported on the outer side by the last columns of the building, and on the inner side by the ring beam suspended by guylines to four cable chains, which are fixed on four L - shaped pylons 58 meters high. The stadium meets FIFA and UEFA requirements.

ⓒ Irina Kaydalina

로코모티프 축구경기장
재건축된 경기장이 있는 25헥타르 규모의 로코모티프 스포츠 단지는 도시를 형성하는 중요한 요소이다. 건축 및 구조 설루션의 일관성에 의해 경기장 이미지의 무결성을 달성했다.
경기장은 2단 스탠드가 있는 6층 구조로, 위층과 아래층 사이에는 두 줄의 관중석이 있는 박스 층이 있다. 각기 다른 팬 그룹이 소통하기 어렵도록 스탠드 레벨을 4개 구역으로 나누었다. 축구장은 배수 시스템, 자동 잔디 급수 시스템 및 난방 시스템을 갖추고 있으며, 필드 주변에 보안 해자(垓字)가 있다. 관중석은 광전송 캐노피 링으로 덮여 있으며, 바깥쪽은 건물의 마지막 기둥에 의해 지지되고, 안쪽은 58m 높이의 L-자 파일론 4개에 고정된 4개의 케이블 체인에 받침줄로 매달린 링 빔으로 지지된다. 경기장은 FIFA 및 UEFA의 자격 요건에 충족되는 디자인이다.

ⓒ Irina Kaydalina
ⓒ Irina Kaydalina
SECTION DETAIL
STRUCTURE MODEL_ROOF



1st FLOOR PLAN



Architect PI-ARENA
Location Cherkizovskaya street, Moscow, Russia
Program Football stadium
Site area 25ha
Building area 29,560,000m²
Gross floor area 73,144,000m²
Height 51m
Capacity About 30,000
Design period 1997. 1 - 2001. 12
Construction period 2000. 3 - 2002. 8
Completion 2002
Principal architect Dmitry Bush
Project architect Sergey Chuklov
Architect Andrey Bokov, Ilya Babak, Kira Lanina, Natalia Nikiforova, Irina Afonina, Oleg Gak, Ekaterina Rudakova
Corporation MNIIP
Master plan Vladimir Timofeev, Nadezhda Odrova, Larisa Davydova
Interior Leonardo LLC Alexey Shvets, Alexey Romanov
Structural engineer Mark Livshin, Pavel Eremeev, Andrey Buzmakov, Ekaterina Svatikova, Margarita Savtsova Mechanical engineer Alexey Volkov
Electrical engineer Elena Ikoeva
Technologist Andrey Shabaidash, Nadezhda Morozova
Construction General contractor JSC "Baltic Construction Company"
Client DKRM MPS
Photographer Irina Kaydalina, Football club "Lokomotiv"



해당 프로젝트는 건축문화 2021년 9월호(Vol. 484)에 게재되었습니다.
The project was published in the September, 2021 issue of the magazine(Vol. 484).
