Bodegas Faustino Winery

ⓒ Nigel Young / Foster + Partners



The Legend of Bodegas Faustino is a new extension to the Bodegas Faustino Winery in Oyón, Rioja Alavesa. Commissioned by the fourth generation of the Martínez Zabala Family, Foster + Partners designed a major extension and refurbished the existing facilities at the winery. Sustainability is integral to the project with a new visitor centre that has been designed as a ‘Planet 1.0’ building.

Bodegas Faustino is located in the heart of Spain’s principal wine making region where the family first started building their wine business. The design reinterprets the winery as a whole and creates a stronger connection between the existing cellars and the surrounding vineyard. The main entrance has been relocated to the north of the site to create a new visitor experience making the vineyard the first thing visitors encounter on their tour – a series of unique experiences in which wine, vineyard, nature, architecture, culture and sustainability blend together.

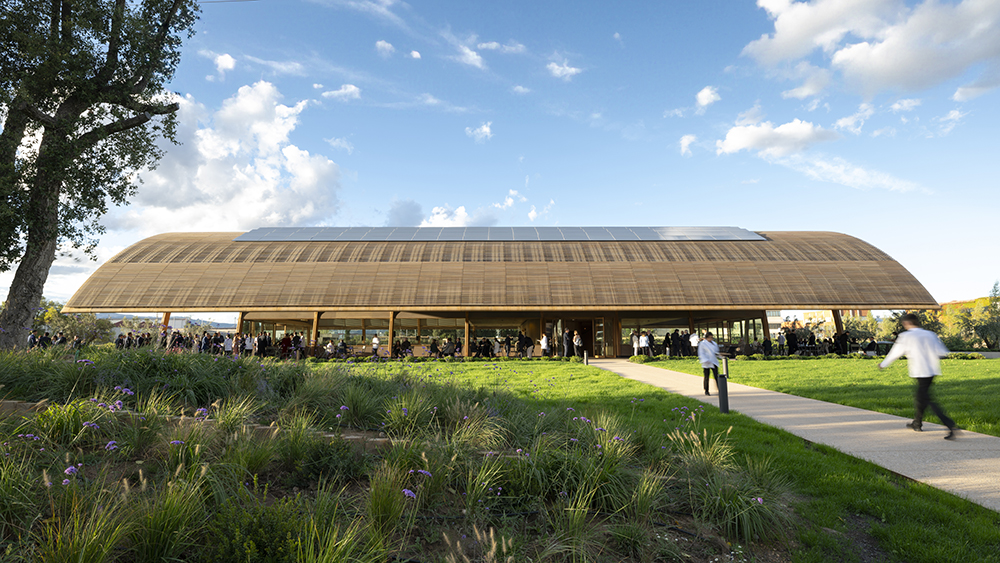

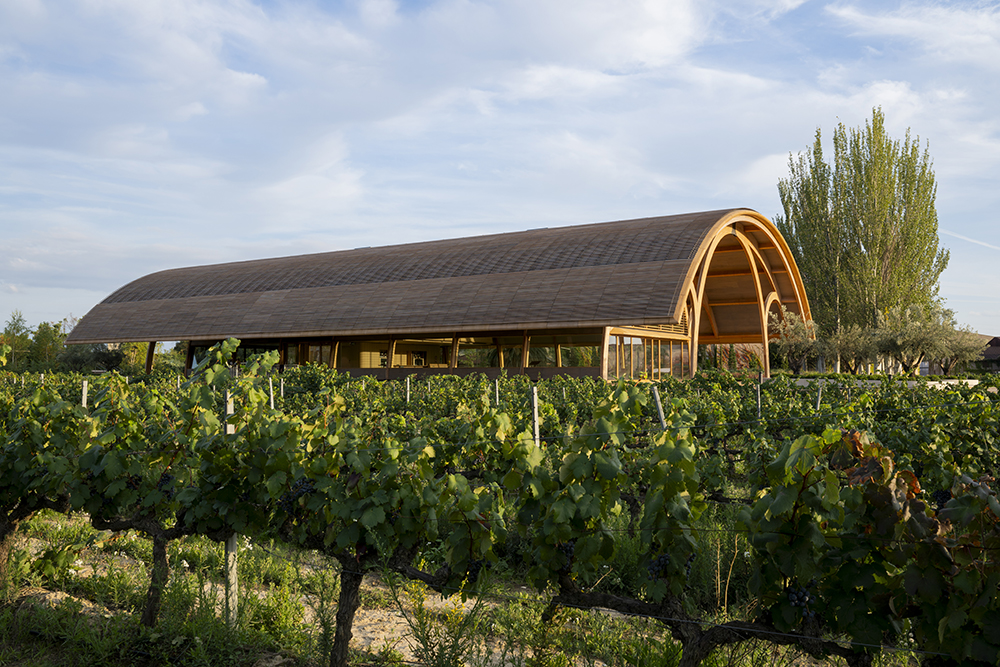

A gentle path leads to the new visitor centre, the main protagonist of the project. It is designed as a vaulted and column-free hall to create a spacious and flexible volume. The vaulted roof is inspired by the industrial heritage of the winery, reinterpreted as a lightweight structure is made from timber arches. The anti-funicular profile enhances structural performance with minimal materials, while its earthy colour palette allows the building to blend seamlessly with the landscape. An asymmetrical core connects with the mezzanine above, while creating two distinctive zones at the lower level, each with a different character. The upper level overlooks the entire visitor centre and the beautiful vineyard landscape beyond.

The new visitor centre is designated as a ‘Planet 1.0’ building – as its carbon emissions can easily be absorbed by the Earth’s green cover – making it a true sustainable exemplar. The building also adopts an Energy Plus strategy led by the photovoltaic panels on the roof that produce more energy than required for building operations. The excess energy is diverted to the existing winery buildings. The building features large overhangs on all four sides to reduce heat gain from the sun while blurring the boundaries between inside and outside. A central skylight and carefully integrated glazed facades bring natural light into the interior spaces, reducing the need for artificial lighting. Natural building materials contribute to a biophilic environment and enhance wellbeing for visitors and employees. The new landscape features local species that enhance biodiversity and a discreet change in topography that is designed to protect the winery from the increasingly frequent heavy rainfall.

The new landscape also blends with the existing site’s existing facilities which, in conjunction with the relocation of the loading bays and control station during harvest, has significantly improved operational efficiency. In addition, underutilised structures have been removed to provide flexibility for future growth in line with client’s desire to incorporate new technologies into the winemaking process. Greenery has been added on to the facades of the existing buildings to provide natural protection from the summer sun, further reducing energy consumption across the site.



ⓒ Nigel Young / Foster + Partners

ⓒ Nigel Young / Foster + Partners

ⓒ Nigel Young / Foster + Partners

ⓒ Nigel Young / Foster + Partners

ⓒ Nigel Young / Foster + Partners

ⓒ Nigel Young / Foster + Partners

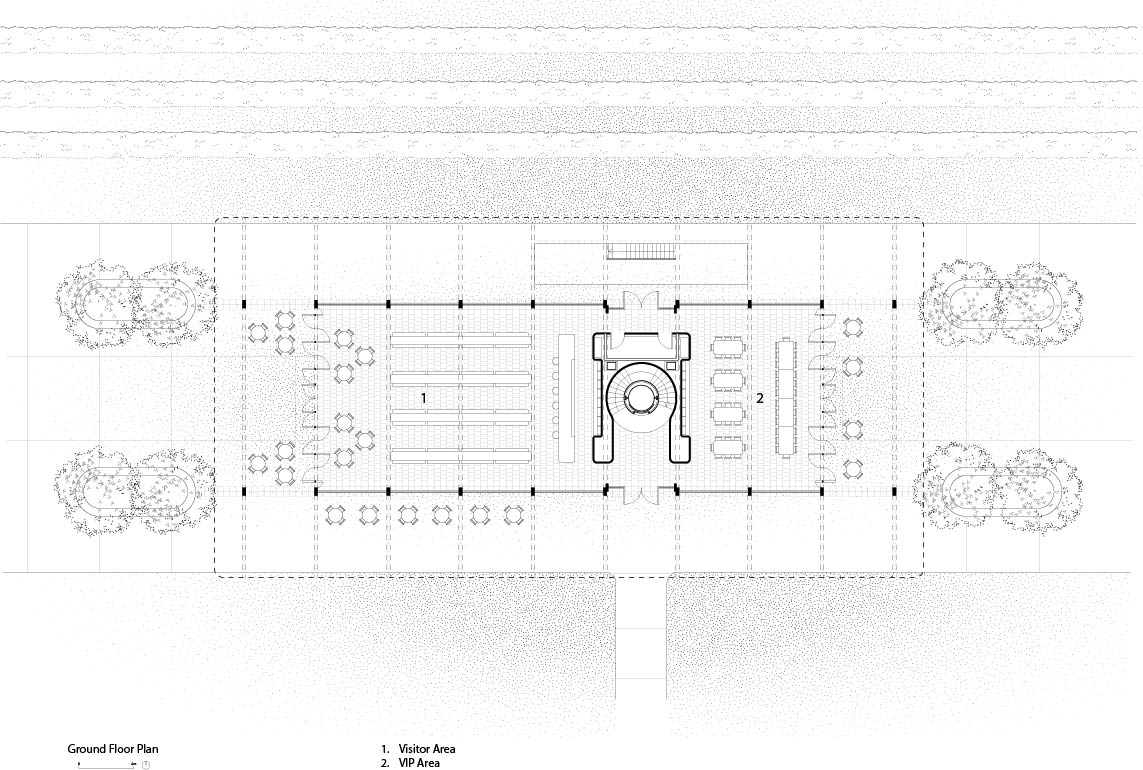

ground floor plan

mezzanine floor plan

section

elevation









건축가 Foster + Partners

위치 Spain, Oyón

대지면적 25,000㎡

연면적 1,090m²

프로젝트기간 2019 - 2024

준공 2024

대표건축가 Norman Foster

협력건축가 Aspa Ingenieros & Consultores

디자인팀 Norman Foster, Nigel Dancey, Taba Rasti, Pablo Urango Lilo, Jaime Valle, Javier Barja de Quiroga Redondo

구조컨설턴트 EUTECA

기계엔지니어 Aspa Ingenieros & Consultores, Valladares Ingeniería

조명 컨설턴트 Osaba Iluminación

건축주 Bodegas Faustino S.L.

사진작가 Nigel Young / Foster + Partners
